Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine

All Products

Chocolate Fold Packing Machine

(32)

Chocolate Bar Packing Machine

(9)

Chocolate Foil Packing Machine

(16)

Chocolate Balls Eggs Packing Machine

(21)

Coated Chocolate Packing Machine

(10)

Single Twisting Packing Machine

(8)

Double Twist Packing Machine

(6)

Tea Products Packing Machine

(3)
Certification
China Chengdu Shengli Machinery Equipment Co., Ltd. certification
I'm Online Chat Now

Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine

Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine
Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine

Large Image :  Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine

Product Details:
Place of Origin: China
Brand Name: SL
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $56,000.00/sets >=1 sets
Packaging Details: Wooden Case
Supply Ability: 5 Set/Sets per Month
Contact Now

Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine

Description
Type: Packaging Line Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Other
Showroom Location: None Application: Food, Commodity, Chemical
Packaging Type: Cartons, Film, Foil, Belt Packaging Material: Plastic, Paper, Aluminium Foil
Automatic Grade: Automatic Driven Type: Electric
Voltage: 380V/220V Dimension(L*W*H): 2970 X 1520 X2200 MM
Weight: 1800 KG Warranty: 1 Year
Key Selling Points: Long Service Life Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Other, Pressure Vessel, Engine, Gearbox Automaticity: Full Automatic
Applicable Product: Food, Desiccant, Pressed Products Product Size: Length 10-80mm; Width 4-45mm; Height 4-35mm
Wrapping Style: Viana Style; Fold, Envelop Packing Speed: 200-300pcs/min
Drive Motor: WANAN Servo Mortor: Omron
After-sales Service: 24-hour Online Service Electric Parts: Schneider
Machine Type: Multi-function Packing Machine Port: SHANGHAI

Product Overview

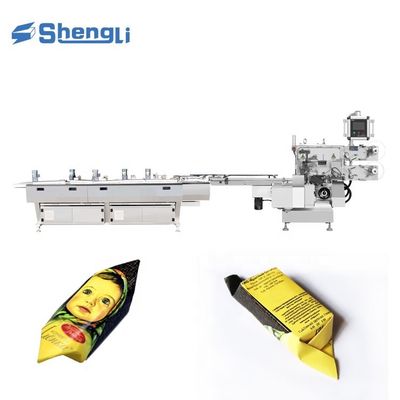

SL-SBQJ450 Automatic Viana Style Chocolate Wrapping Machine

The SL-SBQJ450 series wrapping machine is specially designed for traditional Viana style chocolate wrapping, this packing method adopts folding packaging, leaving two corners similar to the shape of a horseshoe. Double-layer wrapping and single-layer wrapping are available, with fast speed and unique shape.
FEATURES AT A GLANCE

-Wrapping materials are PVC, OPP, PP, and PET Films
-Adjustable matrix mechanism (according to different models of chocolate) (patented)
-Machine has the system of rolling paper with servomotor
-Machine has the system of feeder system with an alignment conveyor (3 bands)
-Machine has safe flywheel
-Machine commanded by PLC system
-Depending on the shape of product, product dimensions and wrapping material can be use
Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine 0
Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine 1
Folding System
Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine 2
Omron Touch Screen
Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine 3
Output
PRODUCT SPECIFICATIONS
No
Item
Data
1
Power
4.0KW
2
Air Supply
0.6 Mpa
3
Packing Speed
200-300pcs/min
4
Wrapper Material
Coated Paper
Wax Paper
BOPP
5
Machine Weight
1800KG
6
Conveyor Machine
680KG
7
Chocolate Size
Length 10-80mm
Width 4-45mm
Height 4-35mm
8
Wrapping Style
Folding
PRODUCT CONFIGURATION
Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine 4
Panasonic Sensor
Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine 5
SUS Material
Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine 6
intelligent PLC
SALES AND SERVICE NETWORK
Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine 7
Successful Project
Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine 8
Project in Thailand
Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine 9
Project in India
Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine 10
Project in Russia
SIMILAR PRODUCTS
Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine 11
Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine 12
Electric Driven Vienna Style Chocolate Wrapping Machine 300ppm Belt Packaging Machine 13
FAQ
1. who are we? We are based in Sichuan, China, start from 2016,sell to Mid East(30.00%),South Asia(10.00%),Northern Europe(10.00%),Eastern Asia(10.00%),North America(10.00%),Oceania(10.00%),Southeast Asia(10.00%),South America(10.00%). There are total about 51-100 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Chocolate packaging machine,Candy packing machine,wrapping machine,packing machine,Chocolate wrapping machine 4. why should you buy from us not from other suppliers? Chengdu ShengLi Machinery Equipment Co.,LTD have been focused on packing machine for more than 16 years and we serve confection factories all over the world. We have a professional team to complete each project. 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
