Product Details:
|
| Type: | Wrapping Machine | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food & Beverage Shops, Chocolate Candy Factory |
|---|---|---|---|
| After Warranty Service: | Online Support, Field Maintenance And Repair Service | Local Service Location: | None |
| Showroom Location: | None | Condition: | New |
| Application: | Food, Medical, Machinery & Hardware, Snacks | Packaging Type: | Film, Foil, Wrapping |
| Packaging Material: | Plastic, Paper, Foil/Film/PET | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 380V |
| Dimension(L*W*H): | 2960*1560*2150 MM | Weight: | 2600 KG |
| After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Machine Type: | Auto Horizontal Wrapping Machine |
| Wrapping Speed: | 300 PPM | Wrapping Size Range(L*W*H): | 15-55*5-30*5-25 MM |
| Sealing Type: | Twisting Wrapping | Power Supply: | 380V/50HZ |
| Conveyor: | Automatic Conveyor Machine | Machine Material: | Stainless Steel&I Spherical Iron |
| Control System: | PLC +Touch Screen | Wrapping Type: | Single And Double Twist Wrapping |
| Wrapper Width: | 80-130 MM |

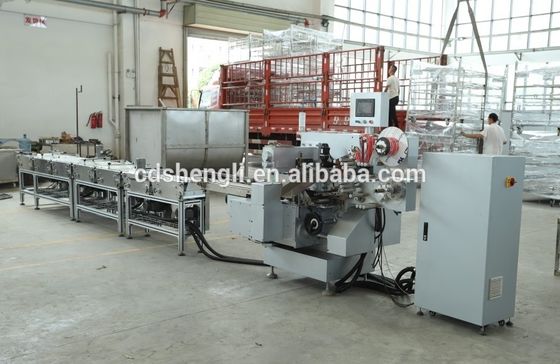

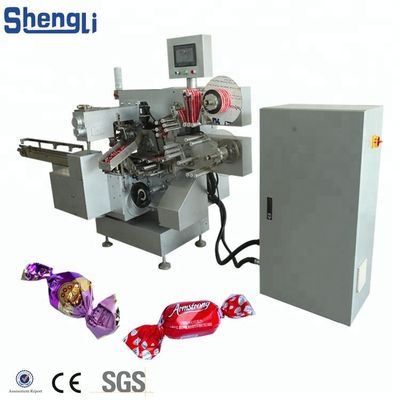

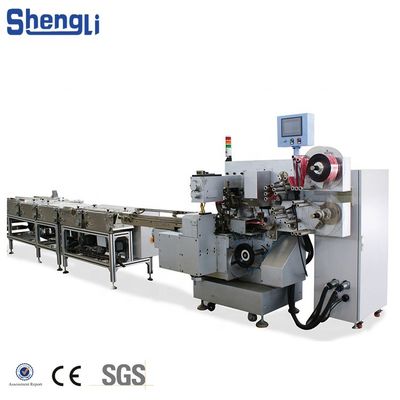

Automatic high speed 300 ppm horizontal double twist candy wrapping machine
The SL-SBSN450 series wrapping machine is mainly used for wrapping chocolate, filled chocolate, praline, hard candy, pressed candy and other foods, snacks that are not easily be handled or fragile. This wrapping machine uses a servo system to control the transfer of wrapping paper, electronic eye detection and transmission of signals, and mechanical transmission to make the machine run more stable. This machine is replaced with two parts, which can be wrapped in a single twist and the double twist of the same size chocolate candy. Replace parts and pack another size chocolate candy.
OND SET OF CHOCOLATE CANDY DOUBLE TWIST WRAPPING MACHINE | |
 | |
| CHOCOLATE BALL DOUBLE TWIST WRAPPING MACHINE | CHOCOLATE FILLED DOUBLE WRAPPING MACHINE |
| |
Main Packing Machine Specification and Technical Parameters | Product Name | Double-twisting wrapping machine | |
Model No | SL-SBSN450 | ||
Packing Speed | 300ppm | ||
Chocolate size | L*W*H | 15-55*5-30*5-25 MM
| |
Total power | 3 KW | ||
Power supply | 380V/220V 50HZ 3P | ||
Air supply | 0.6Mpa | ||
Qualification rate of packaging | >=97% | ||
Air displacement | 0.6 m³/min | ||
Wrapper | Wrapper width | 80-130mm | |
Wrapper material | Foil/PET/Film and so on | ||

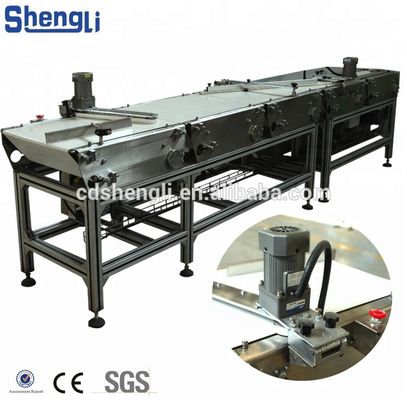

Arranging and Feeding Machine Technical Specification and Main Components | Total Power | 1 KW | |
Compressed Air | 0.6Mpa | ||
Frequency Converter |
Taiwan(Delta) | ||
Gross weight | Wrapping machine | 1600kG | |
Feeding Conveyor | 1000KG | ||
Dimensions of case (L*W*H) | Wrapping machine | 2960*1560*2150mm*1 | |
Feeding Conveyor | 2360*860*1250mm*1 | ||
1560*860*1260mm*2 | |||
Payment method | Pay in advance30%,Payment before delivery70% | ||
The period for dispatch | 60 days after receipt of deposit | ||
Wrapping Machine Main Components
| Servo motor for feeding paper | Japanese(Omron ) |
| Touchscreen | Japanese(Omron ) |
| Frequency converter | Taiwan(Delta) |
| Candy sensor | Germany(SICK) |
| Color code sensor | Germany(SICK) |
| Paper broken proximity switch | Germany(SICK) |
| Oversize candy proximity switch | Germany(SICK) |
| Origin proximity switch | Germany(SICK) |
| Encoder | Japanese(Omron ) |
| Solid relay | Japanese(Omron ) |
| Switch power supply | Japanese(Omron ) |
| Precision potentiometer | Japanese(Omron ) |
| PLC | Japanese(Omron ) |
Chengdu ShengLi Mechanical Equipment Co., LTD is one company which are professional in the design, development, production, and sales of food processing and wrapping machinery and specializing in providing automatic food processing solutions and customer services for decades (Chengdu WealthRise Complete Mechanical Engineering Co., Ltd is a wholly foreign-owned enterprise founded in 2004 ).
(1)Package Standard: Wooden case package as the international trade package
(2)Package Supply and Recovery: Supplier supply package according to customer requirements and recovery depends on customer
(3)FOB SHANGHAI
(4)Package Size and Weight(just for reference )
Gross weight | Wrapping machine | 1600KG | Total 2600KG |
Feeding Conveyor | 1000KG | ||
Dimensions of machine (L*W*H) | Wrapping machine | 2960*1560*2150mm*1 | Total 16m³ |
Feeding Conveyor | 1560*860*1250mm*2 | ||
2360*860*1250mm*1 |
Q1: What’s the payment term you accept?
A1: By T/T or L/C.
Q2: What's your delivery time?
A2: Normal time is 60 days for a single wrapping machine, except for custom wrapping machines. And the actual time will vary from different order conditions.
Q3: How do you pack your machine for shipment?
A3: The machine is overwrapped with plastic film and then packed in fully closed standard wooden cases with the strong bottom pallet.
Q4: How to control your machine quality?
A4: Quality is our belief. We are always focused on Professional design and quality. High precision for parts processing. Use of quality raw material. Use of international brand electrical components.Assembly as per technical standard. Performing trial running and pre-shipment inspection.
Q5: Which countries have you ever exported your machines to?
A5: Malaysia, Belgium, Korea, Russia, Hungary, USA(California), Mexico, India, Turkey, Tajikistan, Uzbekistan, Ukraine, Vietnam, Ecuador, Algeria, California, and Ukraine.
Q6: Why choose us?
A6: (1) Quality machine:
The beautiful outer shape and rational configuration.
High-quality material and renown international brand electrical components.
Advanced control system with PLC, HMI, and Servo.
Simple and easy debugging and operation.
Strong functionality, stable performance and easy maintenance.
High cost-effective performance.
(2)Technical service:
OEM manufacturing. Free on-site technical training.
Optimal customized solution.
Quick response to the user’s query.
Highly efficient and satisfied after-sales service.
Q7: What’s the language used for the operating system?
A7: English is used as an operation control language.
Q8: What’s the warranty period?
A8: 12 months after shipment.
Q9: What about after-sales service?
A9: When necessary, we will send our technician to the customer’s factory for installing, debugging and operating the machines, as well as free technical training service. But, our customer shall bear the service cost for visa, round-trip ticket, meal, hotel and a daily allowance of usd50.
| CHOCOLATE CANDY SINGLE TWIST WRAPPING MACHINE | CHOCOLATE FOLD WRAPPING MACHINE | CHOCOLATE BALLS EGGS WRAPPING MACHINE | CHOCOLATE CANDY BAR WRAPPING MACHINE |
| | | |
