Product Details:
|
| Type: | Multi-Function Packaging Machine | Production Capacity: | 20bag/min, 260 Pcs/min |
|---|---|---|---|
| Applicable Industries: | Food & Beverage Factory | Weight (KG): | 1800 |
| Showroom Location: | None | Condition: | New |
| Function: | Wrapping, Gluing | Application: | Food |
| Packaging Type: | Film, Foil | Packaging Material: | Plastic, Paper |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 380V 50Hz,3-p | Dimension(L*W*H): | 2900*1500*2000mm |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Not Available | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC, Gear, Bearing, Gearbox |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Air Supply: | 0.6mp |
| Packing Speed: | 200-260 Pics/min | Control System: | PLC+Servo+Touch Screen |
| Power: | 380V 3PH(Customized) | Packing Type: | Fold And Gluing |
| Automaticity: | Full-automatic | Bag Size: | Customized |
| Advantage: | High Efficiency | Material: | Stainless Steel 304 / PU |
| Marketing Type: | Hot Product 2019 |
Product Name:

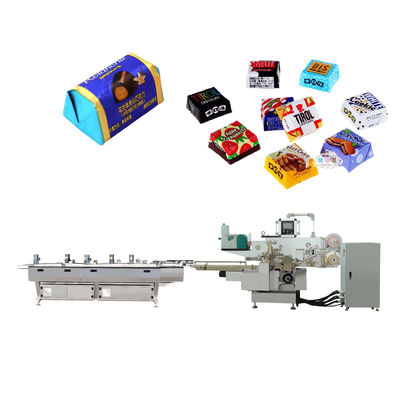

Full Automatic Candy/Chocolate Bar Envelop Fold Packing Machine
Product Description:
1. Main Instruction
This complete machine is a fully automatic high-speed packing machine, which uses automatic control to convey and pack foods, such as chocolate and other food which are not easily handled or fragile.
The complete machine consists of one set SL-SBZB450D Folded Packing Machine and one set SL-SBZL500 Arranging and Feeding Machine
| Model | Material | Picture |
| SL-SBZB450D Folded Packing Machine | Machine body: spherical iron ; Clamp: alloy steel ; Product Touching Area: stainless steel 304 and PU.
|
|
| SL-SBZL500 Sorting Conveyor | Machine body: carbon steel Product Touching Area: PU, SUS304
| |
2. Packing Machine Technical Specification and Main Components
(1). Main Specification and Technical Parameters
|
Main Specification and Technical Parameters | Packing Speed | 260ppm | |
| Size of chocolate | length | 80mm | |
| width | 45mm | ||
| Height | 35mm | ||
| Total power | 8.0kW | ||
| Power supply | 380V/220V 50HZ 3P (Customized) | ||
| Air supply | 0.6Mpa | ||
| Qualification rate of packaging | 98% | ||
Additional wrapping labels available on fold wrapping
|
Layout Diagram(just for reference )
(2)Fold Packing Machine Main Components

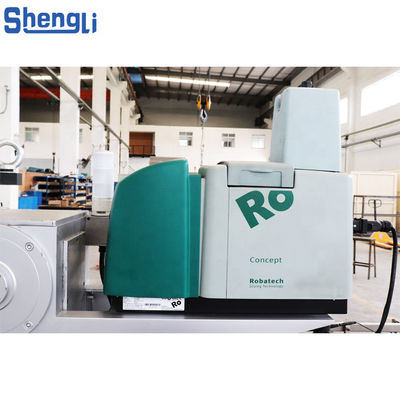

l Servo motor for feeding paper Japanese(Panasonic ) l Touch screen Taiwan(Weinview)7.5” l Frequency converter Taiwan(Delta) l Candy sensor Germany(LEUZE) l Color code sensor Germany(SICK) l Paper broken proximity switch Germany(LEUZE) l Oversize candy proximity switch Germany(LEUZE) l Origin proximity switch Germany(LEUZE) l Encoder Japanese(Omron) l Solid relay Japanese(Omron) l Switch power supply China l RO melting gum machine Swiss(Robert)
3. Arranging and Feeding Machine Technical Specification and Main Components
4. Company Introduction: Chengdu ShengLi Machinery Equipment Co., LTD is one company which are professional in the design, development, production, and sales of food processing and packing machinery and specializing in providing automatic food processing solutions and customer services for decades (Chengdu WealthRise Complete Mechanical Engineering Co., Ltd is a wholly foreign-owned enterprise founded in 2004 ).
5. Package and Shipping (1)Package Standard: Wooden case package as an international trade package (2)Package Supply and Recovery: Supplier supply package according to customer requirements and recovery depend on customer (3)FOB SHANGHAI / SHENZHEN / NINGBO port (4)Package Size and Weight(just for reference )
6. Other Terms 6.1.The Condition and Limits supplier charge: Guarantee one year in standard operation 6.2.Acceptance Inspection and Means: According to enterprise standards in supplier factories, if If you have any suggestions please tell us in one mouth after debugging 6.3.Spare Parts Guarantee one year, except spare parts loss because of incorrect operation. 6.4.Other Terms: The facility’s installation and debugging should be finished in BUYER’s factory by the assigned engineer (usually ONE person) from the SELLER’s factory.BUYER should afford all the expenses generated as soon as the engineer is away from China, which including transportation,meals,accommodations,as well as additional USD80 per person per day during installation and debugging. |
