Product Details:
|
| Type: | Packaging Line | Applicable Industries: | Food & Beverage Factory, Food Shop, Food & Beverage Shops |
|---|---|---|---|
| Showroom Location: | None | Condition: | New |
| Application: | Food, Biscuit | Packaging Type: | Film, Foil, Block |
| Packaging Material: | Paper, PET | Automatic Grade: | Automatic |
| Driven Type: | Mechanical | Voltage: | 380V |
| Dimension(L*W*H): | 2960mm*1560mm*2150mm | Weight: | 2600 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Not Available | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Gear, PLC, Gearbox |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Air Supply: | 0.6 Mpa |
| Qualification Rate Of Packaging: | >=98% | Size Of Chocolate: | Support For Custom |
| Machine Type: | Horizontal Flow Packing Machine | Control System: | PLC+touch Screen |

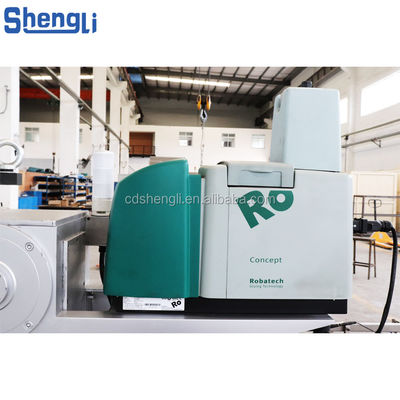

| Seal: | Cold Seal/Robatech Gluing | Capacity: | 200-260ppm |
| Advantages: | Regular Operation For More Than Ten Years | After-sales Service: | 24-hour Online Service |
| Port: | Shanghai |
1. Main Instruction

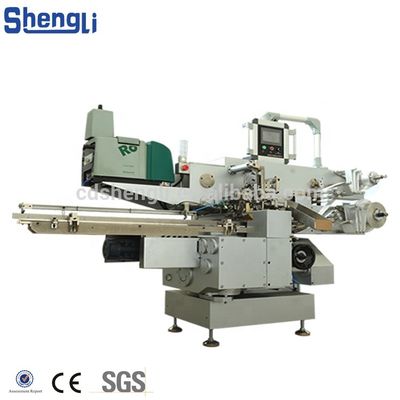

SL-SBZB450D This complete machine is a fully automatic high-speed packing machine, that uses automatic control to convey and pack foods, such as chocolate and other food which are not easily handled or fragile.

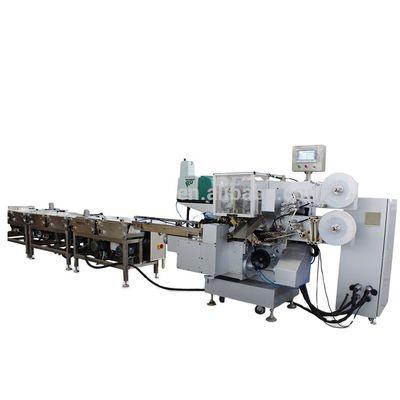

The complete machine consists of one set SL-SBZB450D Folded Packing Machine and one set SL-SBZL500 Arranging and Feeding Machine.
| 1 UNIT CHOCOLATE PACKING MACHINE | 1 UNIT ARRANGING AND FEEDING MACHINE |
 | |
2. Packing Machine Material
| Model | Name | Material |
| SL-SBZB450D | Folded Packing Machine | machine body: spherical iron ; Clip: alloy steel ; Touching with candy parts: stainless steel 304 and PU. |
| SL-SBZL500 | Conveyor Machine | machine body: carbon steel Touching with candy parts: PU. |
SL-SBZB450D series automatic packing machines are mainly used for the folding and envelop style packing of chocolate/ hard candy/biscuit/pressed candy, etc. in certain sizes and shapes. The model is compatible with various types of packaging materials.
1.Main Specification and Technical Parameters
| Packing Speed | 200-260ppm | |
| Size of chocolate | length | 10-80mm |
| width | 4-45mm | |
| Height | 4-35mm | |
| Total power | 5KW | |
| Power supply | 380V/220V 50HZ 3P (voltage must be stable) | |
| Air supply | 0.6Mpa | |
| Qualification rate of packaging | >=98% | |
2.Packing material parameters
| Wrapper width | 200mm |
| Wrapper material | Foil/PET/Film and so on (must be easy to fold ) |
| Wrapper roller size | Paper coin diameter:76-90mm ,roller diameter ≤300mm |

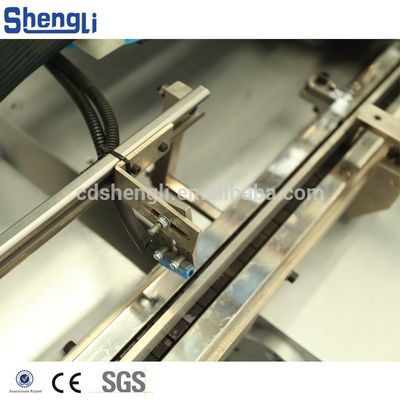

3. Conveyor Machine Technical Specifications and main components
| Technical Specification | Main Components |
| Total Power:2KW Compressed Air:0.6Mpa | Frequency Converter: Taiwan(Delta)
|
Company Introduction
Chengdu ShengLi Mechanical Equipment Co., LTD is one company which are professional in the design, development, production, and sales of food processing and packing machinery and specializing in providing automatic food processing solutions and customer services for decades (Chengdu WealthRise Complete Mechanical Engineering Co., Ltd is a wholly foreign-owned enterprise founded in 2004 ).
| Single Twist Chocolate Wrapping Machine
|
Double Twist Chocolate Wrapping Machine
|
(1)Package Standard: Wooden case package as the international trade package
(2)Package Supply and Recovery: Supplier supply package according to customer requirements and recovery depends on customer
(3)Package Size and Weight(just for reference )
| Gross weight | Packing machine | 1600KG | Total 2600KG |
| Feeding Conveyor | 1000KG | ||
| Dimensions of machine (L*W*H) | Packing machine | 2960*1560*2150mm*1 | Total 16m³ |
| Feeding Conveyor | 1560*860*1250mm*2 | ||
| 2360*860*1250mm*1 |
Q1: What’s the payment term you accept?
A1: By T/T or L/C.
Q2: What's your delivery time?
A2: Normal time is 60 days for a single packing machine, except for custom packing machines. And the actual time will vary from different order conditions.
Q3: How do you pack your machine for shipment?
A3: The machine is overwrapped with plastic film and then packed in fully closed standard wooden cases with the strong bottom pallet.
Q4: How to control your machine quality?
A4: Quality is our belief. We are always focused on Professional design and quality. High precision for parts processing. Use of quality raw material. Use of international brand electrical components.Assembly as per technical standard. Performing trial running and pre-shipment inspection.
Q5: Which countries have you ever exported your machines to?
A5: Malaysia, Belgium, Egypt, Korea, Russia, Hungary, USA(California), Mexico, India, Turkey, Tajikistan, Uzbekistan, Ukraine, Vietnam, Ecuador, Algeria, California, and Ukraine.
Q6: Why choose us?
A6: (1) Quality machine:
The beautiful outer shape and rational configuration.
High-quality material and renown international brand electrical components.
Advanced control system with PLC, HMI, and Servo.
Simple and easy debugging and operation.
Strong functionality, stable performance and easy maintenance.
High cost-effective performance.
(2)Technical service:
OEM manufacturing. Free on-site technical training.
Optimal customized solution.
Quick response to the user’s query.
Highly efficient and satisfied after-sales service.
Q7: What’s the language used for the operating system?
A7: English is used as an operation control language.
Q8: What’s the warranty period?
A8: 12 months after shipment.
Q9: What about after-sales service?
A9: When necessary, we will send our technician to the customer’s factory for installing, debugging and operating the machines, as well as free technical training service. But, our customer shall bear the service cost for visa, round-trip ticket, meal, hotel and a daily allowance of usd50.
