10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox

10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox

Large Image :  10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox

Product Details:
Place of Origin: Sichuan, China
Brand Name: ShengLi
Certification: CE Certification
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $55,000.00/sets 1-2 sets
Packaging Details: Wooden case package as the international trade package
Supply Ability: 5 Set/Sets per Month
Contact Now

10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox

Description
Type: Multi-Function Packaging Machine Applicable Industries: Food & Beverage Factory, Food Shop, Food & Beverage Shops
Showroom Location: None Condition: New
Function: Wrapping, Gluing Application: Food, Chocolate/ Biscuit
Packaging Type: Film, Foil, Fold/ Envelop Packaging Material: Paper, Laminated Film
Automatic Grade: Automatic Driven Type: Electric
Voltage: 380V 50Hz,3-p Dimension(L*W*H): 2900*1560*2150mm
Warranty: 1 Year Key Selling Points: Long Service Life
Machinery Test Report: Not Available Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, PLC, Gear, Bearing, Gearbox
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support Air Supply: 0.6MPa
Chocolate Size: 10-80*4-45*4-35 MM Machine Material: Stainless Steel/Iron Steel
Packing Speed: 200-260 PPM Control System: PLC
Tracking System: Photoelectric Eye Signalling System: Sensor SICK
Seal: Cold Seal Customized Product: Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service Local Service Location: None
Marketing Type: Ordinary Product Port: ShangHai

Product Description

Product Application

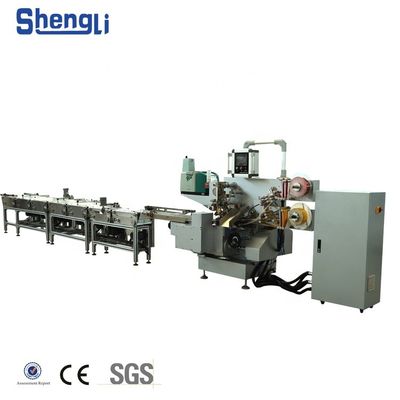

This complete machine is a fully automatic high-speed packing machine, which using automatic control to convey and wrap foods, such as chocolate and other food which are not easily be handled or fragile.
The complete machine consisted of one set SL-SBZB450D Folded Packing Machine and one set SL-SBZL500 Arranging and Feeding Machine

10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 0
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 1
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 2
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 3
Main Features

1. Replace parts of the machine and pack another size.

2.  Packing single and double layers at the same time
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 4
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 5
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 6
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 7
Detailed Images
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 8

Machine Parts

Name: Wrapping paper holder

Material:  Stainless Steel

Function: Transfer wrapping paper

Servo motor controlled, transfer wrapping paper.

Main Parts

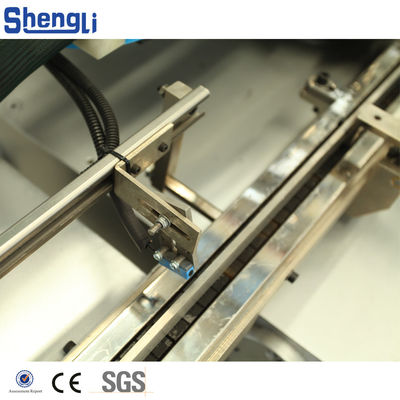

Name: Photoelectric eye
Brand: SICK
Original: Germany
The color code of the induction wrapping paper transmits the signal to the PLC system, controls the size of the wrapping paper, cuts the wrapping paper.

10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 9
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 10

Machine Parts

Name: Candy Clip
Material: Stainless Steel
Function: Fixing and Forming
Fix and transfer the chocolate while the chocolate is being wrapped.

Main Parts

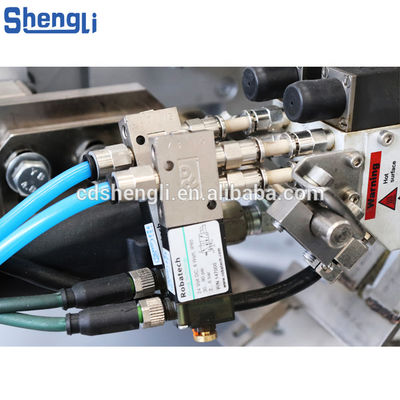

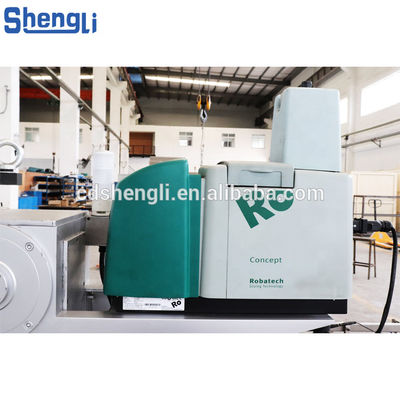

Name: Robatech Gluing
Brand: Robatech
Original: Swiss
Cold seal, gluing.

10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 11
Our Service
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 12

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 13

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
10-80*4-45*4-35 MM Chocolate Size Automatic Biscuit Fold Packing Machine with Gearbox 14
Packaging
Size
2960 (L) * 1560 (W) * 2150 (D) MM
1560 (L) * 860 (W) * 1250 (D) MM
2360 (L) * 860 (W) * 1250 (D) MM
Weight
2.6 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
