Full Automatic Chocolate Tablets Bars Packing Machine with Gluing Function

Name: Full Automatic Chocolate Tablets Bars Packing Machine with Gluing Function
Brand: SHENGLI
SKU: SHENGLI
Price: 120 USD
Availability: InStock
Rating: 4.9 (124 reviews)

All Products

Chocolate Fold Packing Machine
(32)

Chocolate Bar Packing Machine
(9)

Chocolate Foil Packing Machine
(16)

Chocolate Balls Eggs Packing Machine
(21)

Coated Chocolate Packing Machine
(10)

Single Twisting Packing Machine
(8)

Double Twist Packing Machine
(6)

Tea Products Packing Machine
(3)

Certification

I'm Online Chat Now

Full Automatic Chocolate Tablets Bars Packing Machine with Gluing Function

Large Image : Full Automatic Chocolate Tablets Bars Packing Machine with Gluing Function

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	SHENGLI

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$120,000.00/sets 1-2 sets
Packaging Details:	Wooden case package as an international trade package.
Supply Ability:	10 Set/Sets per Month

Contact Now

Full Automatic Chocolate Tablets Bars Packing Machine with Gluing Function

Description

Type:	Multi-Function Packaging Machine	Production Capacity:	300 Pcs/min
Applicable Industries:	Food & Beverage Factory	Weight (KG):	1600
Showroom Location:	None	Condition:	New
Function:	Wrapping, Gluing	Application:	Food, Medical, Chemical, Candy/chocolate
Packaging Type:	Film, Foil	Packaging Material:	Paper
Automatic Grade:	Automatic	Driven Type:	Electric
Voltage:	380V 50Hz,3PH (Customized)	Dimension(LWH):	360016002100mm
Warranty:	1 Year	Key Selling Points:	High-accuracy
Machinery Test Report:	Not Available	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor, PLC, Gear, Bearing, Gearbox
Air Supply:	0.6Mpa	Product Name:	Horizontal Wrapping Machine
Control System:	PLC+Servo+Touch Screen	Main Function:	Folding And Gluing
Packing Speed:	60-150pics/min	Color:	Silver
Packing Material:	Foil/paper	Automatiac Grade:	Full Automatic
Product Size:	L:80-200 W:40-100 H:10-40 (mm)	Port:	ShangHai / Shenzhen / Guangzhou

Our Advantages

How can we help you to make your chocolate/candy a success?

We specializing in the production of chocolate wrapping machines for more than 15 years.
And efforts to expand the scope of other applications, to meet the different needs of customers.

We take care of your confectionery and optimize your packaging.

Product Description

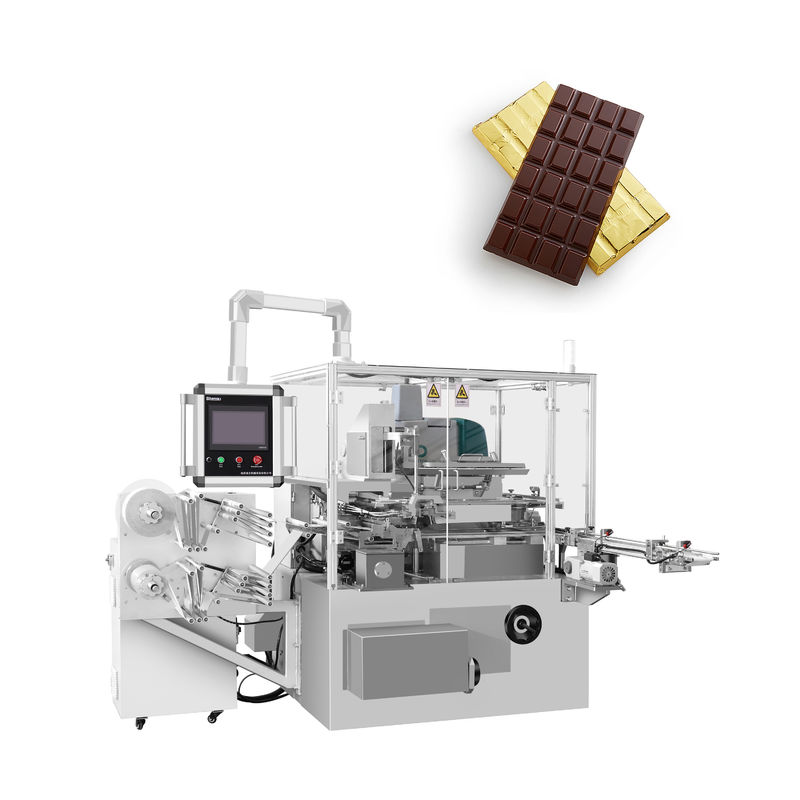

Full Automatic Chocolate Tablets Bars Packing Machine

SL-SBZB100D series automatic wrapping machines are mainly used for the folding and enveloping style wrapping for chocolate / biscuit / candy etc. used for big size bar wrapping,length from 80 to 200mm. speed 40-60 pcs/min. It is mostly used for chocolate bar,but also can use for other material,such as bar soap,drier,paint block.

Meanwhile, optional label wrapping and double layers wrapping, wrapping styles are more diverse and flexible.

SPECIFICATIONS FOR CHOCOLATE TABLETS PACKING MACHINE
CHOCOLATE TABLETS PACKING MACHINE	Packing Speed	60-120 Pics/Min
		Chocolate/Candy Size	L:80-200 W:40-100 H:10-40 (mm)
		Wrapper Material	Foil / PET / Film and so on
		Qualification rate of packaging	>=98%
		Power of Mainframe	8.0KW
		Power of Conveyor	2.5KW
		Compressed Air	0.6Mpa

Detailed Images

1.Adopt PLC,Servo Motor and HMI touch screen, highly integrated and intelligent, easy to operating.

2.Application high accuracy electrical components(sensor, servo motor) and high strength mechanical transmission system. Guaranteed high-speed and smooth production.
3.Self-protection for abnormal product. and paper feed according to material signal.

Robatech Gluing

Brand: Robatech ( Swiss )

Hot melt adhesives in different forms can be processed efficiently and gently. Cold seal with nice performance.

Photoelectric Sensor

Brand: Leuze (Germany)
Detect material and feedback to the PLC control system. Reliable self-protection against abnormal product.

Color Mark Sensor

Brand: Leuze (Germany)
Detect the color mark on the wrapping paper, meet accurate paper feed.

PLC Controller

Automatic control system,highly integrated and intelligent.

A variety of protection functions to ensure the production.

Mechanical System

Precision, high strength, high accuracy, guarantee high-speed and smooth production.

Packing&Shipping

(1)Package standard: Wooden case package as an international trade package.
(2)Package supply and recycle: Supplier supply package according to customer requirements and recycle depend on customer.

Related Products

After Sales Service

1.When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.

2.In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3.From the date of the buyer receive the machines, free warrant for 12 months.

Company Introduction

Chengdu ShengLi Machinery Equipment Co.,LTD
Add:No.999,Eastern of Kesheng Rd,Cross-straits IT Development Zone,Wenjiang,Chengdu ,China. 611130
Contact: Nikko Yu
Tel:0086-028-82601208 Fax:0086-028-82602518
Web: www.shenglipack.com Mob/WeChat/whatsapp:18884315758

FAQ

Q1: How to find a CHOCOLATE TABLETS PACKING MACHINE suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product and what size it is?
2. What kind of packaged form?
3. You requirement for the machines.

Q2: Are you a real factory/manufacturer?
We are factory. We have experience in packing machine more than 15 years.

Q3: Is engineer available to serve oversea?
Yes, we can send engineers to your factory but all the fee will be on buyers.
In order to save your cost, we will try our best to assist you to installaton the machine by video and online support.

Q4. How can we make sure about the machine quality after placing the order?

At SHENGLI it all begins with immersing ourselves into a project. The more we know, the better we can be at your service.
We have applied the techniques from ITALY to chocolate for more than fifteen years already. We still profit from the knowledge and expertise of that time.
Before delivery, we will running-in a period of the machine to confirm all the parts is working properly.And the testing video
will send to you until you are sastisfied. We will setting all the parameters well.
And also you can arrange for quality checking by yourself or your agent in China.
