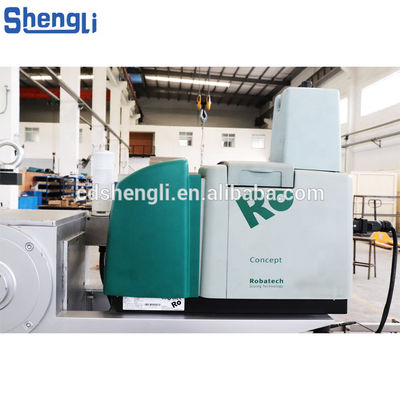

Name: Robatech Gluing
Brand: Robatech
Original: Swiss
Cold seal, gluing.
|
Product Details:
|
| Type: | Multi-Function Packaging Machine | Production Capacity: | 260pcs/min |
|---|---|---|---|
| Applicable Industries: | Food & Beverage Factory, Food Shop, Food & Beverage Shops | Weight (KG): | 1800 |
| Showroom Location: | None | Function: | Wrapping, Sealing, Gluing |
| Application: | Food, Medical, Chemical, Candy/Chocolate/Biscuit | Packaging Type: | Foil |
| Packaging Material: | Plastic, Paper, Laminated Film/Paper | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 380V |
| Dimension(L*W*H): | 2960 Mm*1560 Mm*2150 Mm | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Machinery Test Report: | Not Available |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, PLC, Gear, Bearing, Gearbox | Matched Machine: | Automatic Conveyor Machine |
| Costomized: | Customization | Packing Speed: | 200-260PPM |
| Sealing Type: | Cold Seal/Robatech | Packing Type: | Block Folding Wrapping |
| Control: | PLC+Transducer | Machine Weight: | 2600KG |
| Machine Material: | Stainless Steel / Carbon Steel | Marketing Type: | Hot Product 2019 |
| Port: | SHANGHAI / GUANGZHOU PORT |

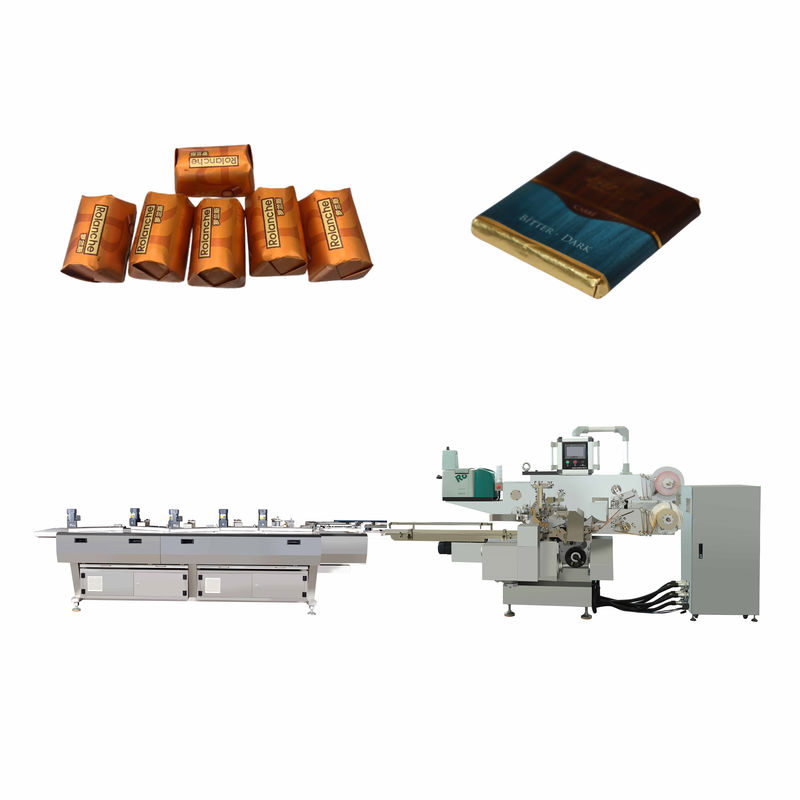

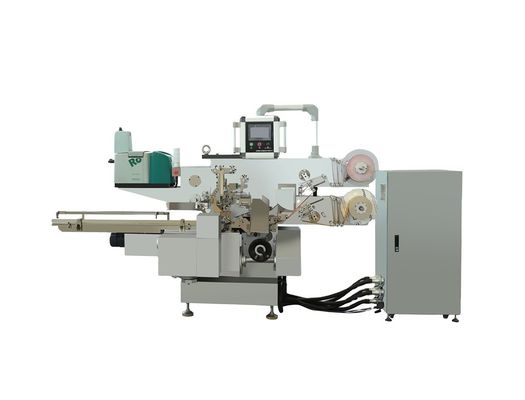

SL-SBZB450D series automatic wrapping machines are mainly used for the folding and enveloping style wrapping for chocolate/ biscuit/hard candy/ pressed candy etc, a variety of sizes and shapes. The model is compatible with various types of wrapping materials. Meanwhile, which adds additional label wrapping and double layers wrapping function, providing more variety and flexibility in wrapping style.
At the same time, this wrapping machine is equipped with a set of automatic conveyors for conveying and sorting materials.
SPECIFICATIONS FOR FOLD WRAPPING MACHINE | ||||||
Main Wrapping Machine | Packing Speed | 200-260 PPM | ||||
Chocolate Size | Length*Width*Thickness: 10-80*4-45*4-35 MM | |||||
Qualification rate of packaging | >=98% | |||||
Conveyor Machine | Total Power | 2 KW | ||||
Compressed Air | 0.6 Mpa | |||||
Frequency Converter | Taiwan (Delta) | |||||
Payment Method | Pay in advance30%,Payment before delivery70% | |||||
The Period For dispatch | 60 days after receipt of deposit | |||||
Name: Robatech Gluing
Brand: Robatech
Original: Swiss
Cold seal, gluing.
Name: Photoelectric Eye
Brand: SICK
Original: Germany Detect material and send signals to the PLC control system. When the material stops conveying, the packaging machine will automatically slow down or stop the line.
Name: Color Code Sensor
Brand: SICK
Original: Germany
Detect the color code on the wrapping paper, send signals, and control the size of the wrapping paper.

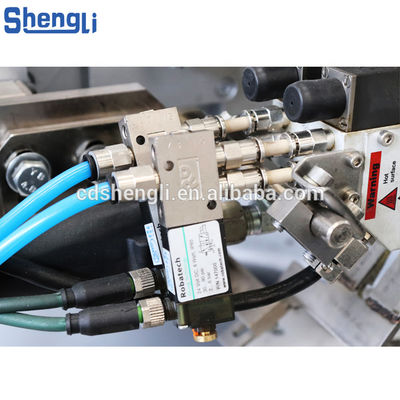

Name: Glue Applicator
Brand: Robatech
Original: Germany
Spray food grade glue onto the wrapper for sealing.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 2960 (L) * 1560 (W) * 2150(D) MM | |
Weight | 1.6 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 2360 (L) * 860 (W) * 1250 (D) MM 1560 (L) * 860 (W) * 1260 (D) MM | |
Weight | 1 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
