Product Details:
|
| Type: | Multi-Function Packaging Machine | Production Capacity: | 260pcs/min |
|---|---|---|---|
| Applicable Industries: | Food & Beverage Factory | Weight (KG): | 1600 |
| Showroom Location: | None | Condition: | New |
| Function: | Wrapping, Gluing | Application: | Food |
| Packaging Type: | Film, Foil | Packaging Material: | Paper, Plastic |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 380V 50Hz,3-p | Dimension(L*W*H): | 2900*1500*2000mm |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Not Available | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC, Gear, Bearing, Gearbox |
| Air Supply: | 0.6MPa | Product Name: | Automatic Chocolate Foil Packing Machine |
| Machine Type: | Multi-function Packing Machine | Main Function: | Packaging |
| Packing Speed: | 200-300ppm | Packing Material: | Foil/film |
| Matched Machine: | Arranging And Feeding Machine | Transport Pacasge: | Export Package For Chocolate Packing Machine |
| HS Code: | 8422303090 | Inclusion Degree: | Fully Wrapped Winding Machine |
| Port: | Shanghai |
Tresor Dore Type Aluminum Foil Packaging Chocolate Machiner)

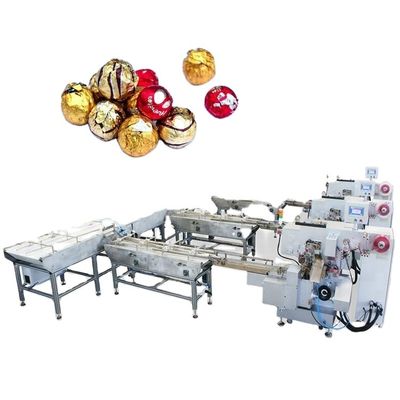

(1 UNIT CHOCOLATE PACKING MACHINE+1 UNIT ARRANGING AND FEEDING MACHINE)
Product Description:
1.Main Instruction
This complete machine is a full automatic high-speed packing machine,which using automatic control to convey and pack foods,such as chocolate and other food which are not easily be handled or fragile.

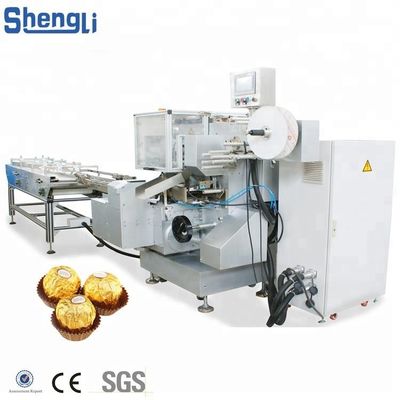

The complete machine consists of one unit SL-SBJS260 Tresor Dore Packing Machine and one unit SL-SBZL300JArranging and Feeding Machine.
| Model | Name | Material | Picture |

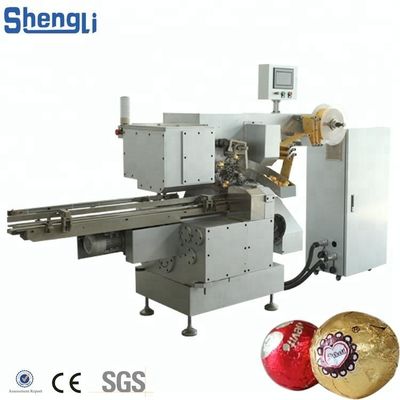

| SL-SB JS260 | Tresor Dore Aluminum Foil Chocolate Packing Machine Manufacture
| machine body : spherical iron ; Clip : alloy steel ; Touching with candy parts :stainless steel 304 and PU
|
|
| SL-SB ZL300J | Arranging and Feeding Machine
| machine body : carbon steel Touching with candy parts :PU
|
|
Special Features:
1. Adopt PLC & program software , easy operating and setting .Auto-human touch screen and three color warning light ,self failure diagnosis , clear failure display .
2.Two language show on touch screen.
3.Fully automatic program-controlled with servo motors,highly stable and reliable
4.Flexible in color sensor settings,paper feeding self-tracking and correction during packing ,providing a consistent packing style and a good product appearance.
5.Self-protection for abnormal product
6.Online product feeding status monitoring-only feeding wrapping paper when product arrives desired position,which keeps paper consumption at an extremely low level.
7.Removable truckle with machine ,height can be adjusted.
7.Large space switch power supply,electrical device’s brand can be choose.
2.Packing Machine Technical Specification and Main Components
(1).Main Specification and Technical Parameters
Table 1
| Main Specification and Technical Parameters | Packing speed | 200-300ppm | |
| Chocolate size | Chocolate size | diameter | 15-32mm |
| power | Total power | 3kW | |
| supply | Power supply | 380V 50HZ 3P | |
| Air supply | Air supply | 0.6Mpa | |
| Qualification | Qualification rate of packaging | 98% | |
Table2
Table3
| Wrapper size(L*W) | 100*100mm |
| Wrapper material | Aluminum Foil |
| Wrapper | Must send to our factory 30 days with order |
Table 4
| Air compressed | 0.6MPa |
| Air displacement | 0.6 m³/min |
Table 5
| Chocolate sample | Must send to our factory 30 days with order |
(2).Main Components
l Servo motor for feeding paper Japanese(Panasonic )
l Touch screen Taiwan(Weinview)7.5”
l Frequency converter Taiwan(Delta)
l Candy sensor Germany(LEUZE)
l Color code sensor Germany(SICK)
l Over size candy proximity switch Germany(LEUZE)
l Origin proximity switch Germany(LEUZE)
l Encoder Italian(LIKA)
l Solid relay Japanese(Omron)
l Switch power supply China
l Precision potentiometer Moxie(Duoquan)
l PLC Chengdu(SL)
3. Arranging and Feeding Machine Technical Specification and Main Components
| Technical Specification | Main Components |
| Total Power:1 KW Compressed Air:0.6Mpa | Frequency Converter:Taiwan(Delta)
|
4.Package and Shipping
(1)Package Standard:Wooden case package as international trade package.
(2)Package Supply and Recovery:Supplier supply package according to customer requirements and recovery depend on customer.
(3)Package Size and Weight(just for reference )
(4)FOB SHANGHAI
| Gross weight | Packing machine | 1600kG | Total 2000KG |
| Feeding Conveyor | 400KG | ||
| Dimensions of machine (L*W*H) | Packing machine | 2970*1570*2250mm*1 | Total 14m³ |
| Feeding Conveyor | 2570*1070*1450mm*1 |
6.Other Terms
6.1.The Condition and Limits supplier charge:Guarantee one year in standard operation
6.2.Acceptance Inspection and Means:According to enterprise standard in supplier factory,if you have any suggestion please tell us in one mouth after debug
6.3.Spare Parts and Tools Instruction:Check in Appendix 1
6.4.Spare Parts Guarantee: one year ,except spare parts loss because of incorrect operation.
6.5.Other Terms:Facility’s installation and debugging should be finished in BUYER’s factory by the assigned engineer (usually ONE person) from SELLER’s factory.BUYER should
afford all the expenses generated as soon as engineer being away from China,which including transportation,meals,accommodations,as well as additional cost during installation and debuggi
