Product Details:
|
| Type: | Multi-Function Packaging Machine | Production Capacity: | 300 Pcs/min |
|---|---|---|---|
| Applicable Industries: | Food & Beverage Factory | Weight (KG): | 1800 |
| Showroom Location: | None | Condition: | New |
| Function: | Wrapping | Application: | Food, Medical, Chemical |
| Packaging Type: | Film, Foil | Packaging Material: | Paper, Plastic |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 380V 50Hz,3phase | Dimension(L*W*H): | 2900*1500*2000mm |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Not Available | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC, Gear, Bearing, Gearbox |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Air Supply: | 0.6MPa |
| Control System: | PLC+Servo+Touch Screen | Packing Range: | L:10-80 W:4-45 H:4-35 (mm) |
| Packing Material: | Aluminizer Film | Packing Type: | Aluminum Foil Wrapping |
| Packaging Speed: | 200-300 Pcs /min | Main Function: | Chocolate Wrapping Machine |
| Display: | Touch Screen | Marketing Type: | New Product 2019 |
| Port: | Shanghai |
Product Name:

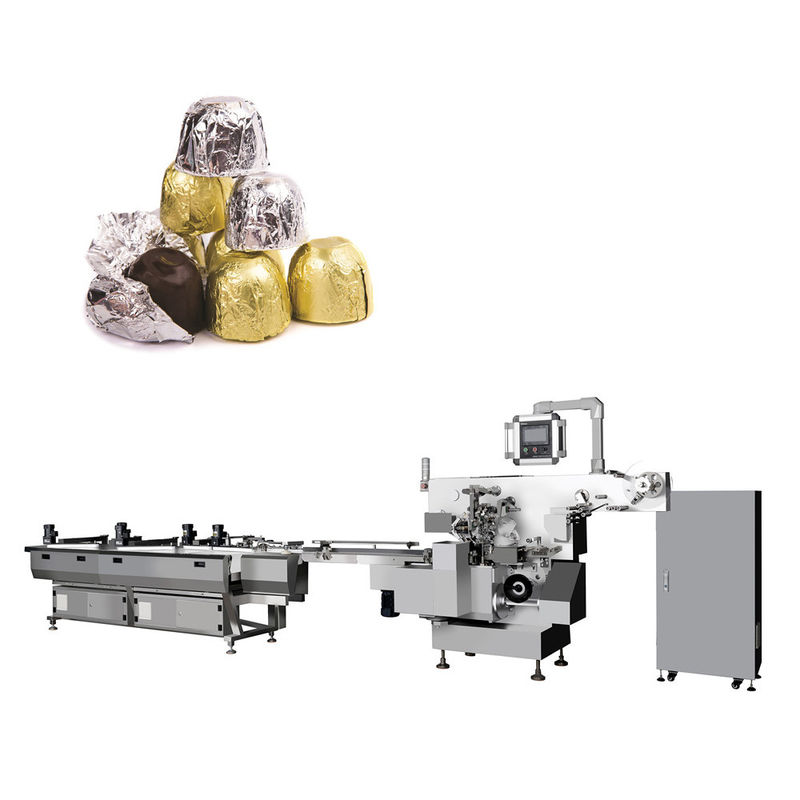

Aluminum Foil Candy Cookie Wrapping Packaging Machine For Chocolate Bars
(1 UNIT CHOCOLATE PACKING MACHINE
+1 UNIT ARRANGING AND FEEDING MACHINE)
Product Description:
1. Main Instruction
This complete machine is a fully automatic high-speed packing machine, which uses automatic control to convey and pack foods, such as chocolate and other food which are not easily be handled or fragile.
| Model | Name | Material |

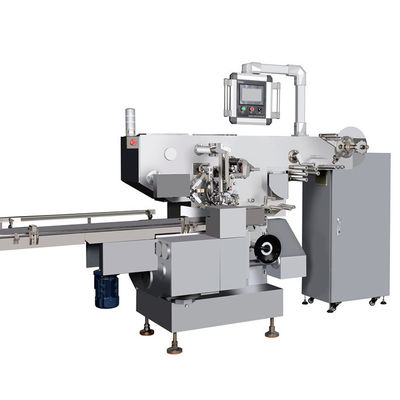

| SL-SBZB450S | CHOCOLATE BAR Foil Packing Machine | machine body: spherical iron ; Clip: alloy steel ; Touching with candy parts: stainless steel 304 and PU. |
| SL-SBZL500 | Arranging and Feeding Machine | machine body: carbon steel Touching with candy parts: PU. |
Special Features:
1. Adopt PLC & program software, easy operating and setting. Auto-human touch screen and three-color warning light, self failure diagnosis, clear failure display.
2. Fully automatic program-controlled with servo motors, highly stable and reliable
3. Flexible in color sensor settings, paper feeding self-tracking, and correction during packing, providing a consistent packing style and a good product appearance.
4. Self-protection for abnormal product
5. Online product feeding status monitoring-only feeding wrapping paper when the product arrives desired position, which keeps paper consumption at an extremely low level.
6. Removable truckle with the machine, height can be adjusted.
7. Large space switch power supply, electrical device’s brand can be choosen.
2. Packing Machine Technical Specification and Main Components
(1). Main Specification and Technical Parameters
Table1
|
Main Specification and Technical Parameters | Packing Speed | 200-300ppm | |
| Size of chocolate | length | 155mm | |
| width | 76mm | ||
| Height | 10mm | ||
| Total power | 5.0kW | ||
| Power supply | 380V/220V 50HZ 3P (voltage must be stable) | ||
| Air supply | 0.6Mpa | ||
| Qualification rate of packaging | 98% | ||
Table 3
| Wrapper width | 80-130mm |
| Wrapper material | Foil/PET/Film and so on (must be easy to brush ) |
| Wrapper roller size | Paper coin diameter:76-90mm ,roller diameter ≤300mm |
| Must send to our factory on two months after order | |
Table 4
| Air compressed | 0.6MPa |
| Air displacement | 0.6 m³/min |
(2)Folded Packing Machine Main Components
l Servo motor for feeding paper Japanese(Panasonic )
l Touch screen Japanese(Omron)”
l Frequency converter Taiwan(Delta)
l Candy sensor Germany(LEUZE)
l Color code sensor Germany(SICK)
l Paper broken proximity switch Germany(SICK)
l Over-size candy proximity switch Germany(SICK)
l Origin proximity switch Germany(SICK)
l Encoder Italian(LIKA)
l Solid relay Japanese(Omron)
l Switch power supply Japanese(Omron)
l Precision potentiometer USA Brand
l RO melting gum machine Swiss(Robert)
l PLC SL
3. Arranging and Feeding Machine Technical Specification and Main Components
4. Company Introduction:
|
|
5. Package and Shipping
(1)Package Standard: Wooden case package as an international trade package
(2)Package Supply and Recovery: Supplier supply package according to customer requirements and recovery depend on customer
(3)FOB SHANGHAI
| Gross weight | Packing machine | 1600KG |
Total 2600KG |
| Feeding Conveyor | 1000KG | ||
| Dimensions of machine (L*W*H) | Packing machine | 2960*1560*2150mm*1 | Total 14m³ |
| Feeding Conveyor | 1560*860*1250mm*1 | ||
| 2360*860*1250mm*1 |
6. Other Terms
6.1.The Condition and Limits supplier charge: Guarantee one year in standard operation
6.2.Acceptance Inspection and Means: According to enterprise standards in supplier factories, if
you have any suggestions please tell us in one mouth after debugging
6.3.Spare Parts and Tools Instruction: Check-in Appendix 1
6.4.Spare Parts Guarantee one year, except spare parts loss because of incorrect operation.
6.5.Other Terms: Facility’s installation and debugging should be finished in BUYER’s
factory by the assigned engineer (usually ONE person) from the Seller’s factory. BUYER
should afford all the expenses generated as soon as the engineer is away from China,
which including transportation,meals,accommodations,as well as additional USD80 per
person per day during installation and debugging.
