Product Details:
|
| Type: | Multi-Function Packaging Machine | Production Capacity: | 20bag/min |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Food Shop | Weight (KG): | 1600 |
| Showroom Location: | None | Condition: | New |
| Function: | FILLING, Labeling | Application: | Food, Medical, Chemical |
| Packaging Type: | Film, Foil | Packaging Material: | Plastic, Paper |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 380V (Customized) | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Machinery Test Report: | Not Available |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Pump, PLC, Engine | Advantage: | Meet Wrapping Technical Requestments |
| Packing Speed: | 260pcs/min | Size Of Chocolate: | L:10-80 W:4-45 H*4-35(mm) |
| Air Supply: | 0.6Mpa | Qualification Rate Of Packaging: | >=98% |
| Wrapper Width: | 80-130mm | Wrapper Materia: | Foil/Film And So On |
| Material: | Stainless Steel | Control System: | PLC+ TOUCH SCREEN |
| Color Code Sensor: | SICK Brand |
Automatic New Design High-Speed Chocolate Foil Wrapping Machine
|
Main Packing Machine Specification and Technical Parameters | Product Name | Foil packing machine | |
| Model No | SL-SBZB450S/ SL-SBZL500 | ||
| Packing Speed | 200-300ppm | ||
| Chocolate size(L*W*H) | Normal(mm) | 10-80*4-45*4-35 MM | |
| Total power | 5KW | ||
| Power supply | 380V/220V 50HZ 3P | ||
| Air supply | 0.6Mpa | ||
| Qualification rate of packaging | >=97% | ||
| Air displacement | 0.6 m³/min | ||
|
Wrapper | Wrapper width | 80-130mm | |
| Wrapper material | Foil/PET/Film and so on | ||
| Arranging and Feeding Machine Technical Specification and Main Components | Total Power | 2 KW | |
| Compressed Air | 0.6Mpa | ||
|
Frequency Converter |
Taiwan(Delta) | ||
| Gross weight | Packing machine | 1600kG | |
| Feeding Conveyor | 1000KG | ||
| Dimensions of case (L*W*H) | Packing machine | 2960*1560*2150mm*1 | |
|
Feeding Conveyor | 2360*860*1250mm*1 | ||
| 1560*860*1260mm*2 | |||
| Payment method | Pay in advance30%,Payment before delivery70% | ||
| The period for dispatch | 60 days after receipt of deposit | ||

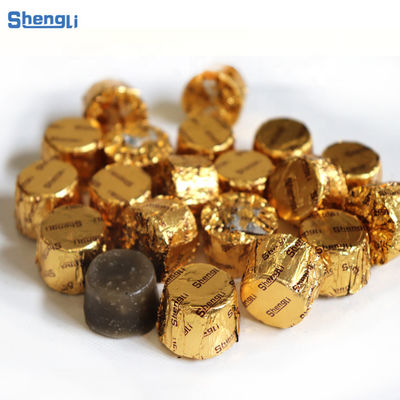

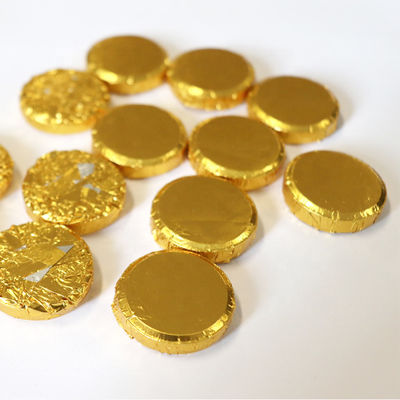

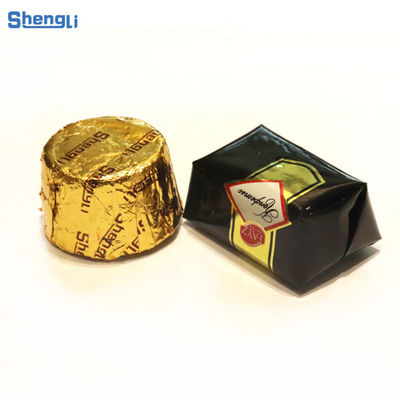

This complete machine is a fully automatic high-speed packing machine, which uses the automatic control to convey and pack foods, such as chocolate and other food which are not easily handled or fragile.

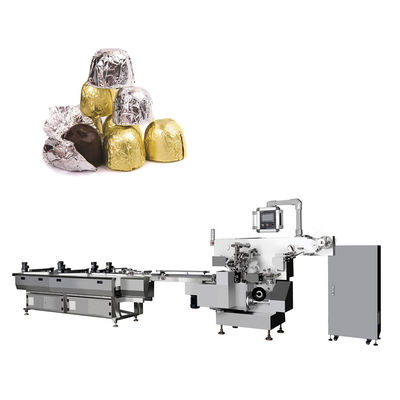

The complete machine consists of one set SL-SBZB450S Foil Packing Machine and one set SL-SBZL500 Arranging and Feeding Machine.

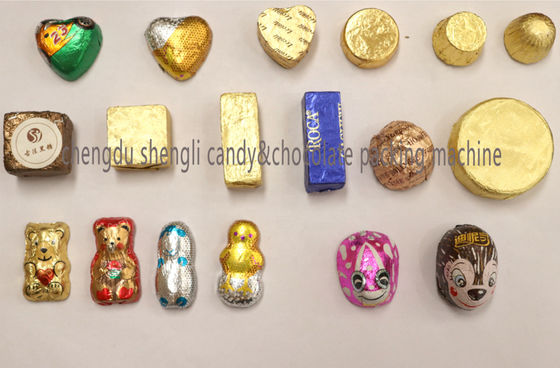

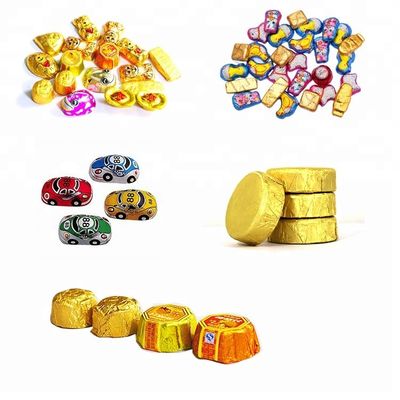

SL-SBZB450S series automatic packing machines are mainly used for brushing style packing of chocolate, hard candy, pressed, etc. The model is suitable for different types of aluminum foil packing materials, providing a wide choice of product shapes and sizes. The packing machine possesses full details of patterns on packing material with various styles, providing an excellent packing performance.
l Servo motor for feeding paper Japanese(Ormon)
l Touchscreen Japanese(Omron)
l Frequency converter Taiwan(Delta)
l Candy sensor Germany(LEUZE)
l Color code sensor Germany(SICK)
l Paper broken proximity switch Germany(SICK
l Oversize candy proximity switch Germany(SICK
l Origin proximity switch Germany(SICK)
l Encoder Italian(LIKA)
l Solid relay Japanese(Omron)
l Switch power supply Japanese(Omron
l Precision potentiometer Mexico (Duncan)
l RO melting gum machine Swiss(Robert)
l PLC Chengdu(SL)
1. Adopt PLC & program software, easy operating and setting. Auto-human touch screen and three-color warning light, self-failure diagnosis, clear failure display.
2. Fully automatic program-controlled with servo motors, highly stable and reliable
3. Flexible in color sensor settings, paper feeding self-tracking, and correction during packing, providing a consistent packing style and a good product appearance.
4. Self-protection for abnormal product
5. Online product feeding status monitoring-only feeding wrapping paper when the product arrives desired position, which keeps paper consumption at an extremely low level.
6. Removable truckle with the machine, height can be adjusted.
7. Large space switch power supply, an electrical device’s brand can be chosen.
Chengdu ShengLi Machinery Equipment Co., LTD is one company which are professional in the design, development, production, and sales of food processing and packing machinery and specializing in providing automatic food processing solutions and customer services for decades (Chengdu WealthRise Complete Mechanical Engineering Co., Ltd is a wholly foreign-owned enterprise founded in 2004 ).
Package Standard: Wooden case package as the international trade package
Package Supply and Recovery: Supplier supply package according to customer requirements and recovery depends on customer
FOB SHANGHAI
