Product Details:
|
| Type: | Multi-Function Packaging Machine | Production Capacity: | 300 Pcs/min |
|---|---|---|---|
| Applicable Industries: | Food & Beverage Factory | Weight (KG): | 1600 |
| Showroom Location: | None | Condition: | New |
| Function: | Wrapping | Application: | Food, Chocolate/candy/snack |
| Packaging Type: | Film, Foil | Packaging Material: | Paper, Plastic |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 380V 50Hz,3-p | Dimension(L*W*H): | 2900*1500*2000mm |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Not Available | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC, Gear, Bearing, Gearbox |
| Air Supply: | 0.6MPa | Product Name: | Horizontal Wrapping Machine |
| Main Function: | Spherical Brushing Packing Machine | Machine Type: | Egg Packing Machine |
| Packing Material: | Aluminum Foil | Packing Speed: | 300-400ppm |
| Specification: | Chocolate Ball Packing Machine | Chocolate Size: | (Spherical) D:10-60 Mm |
| Matched Machine: | Arranging And Feeding Machine | Port: | Shanghai |
Product Name: 300-400ppm Automatic Coin Foil Chocolate Egg Packing Machine
Product Description:
1.Main Instruction

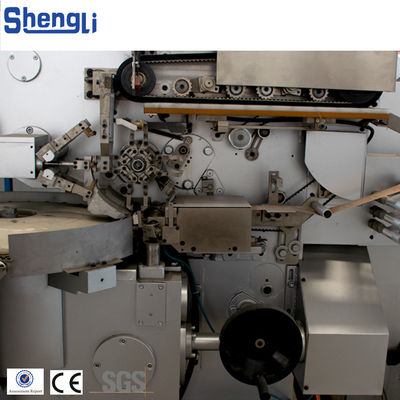

This complete machine is a fully automatic high-speed packing machine, which using the automatic control to convey and pack foods, such as chocolate and other food which are not easily be handled or fragile.

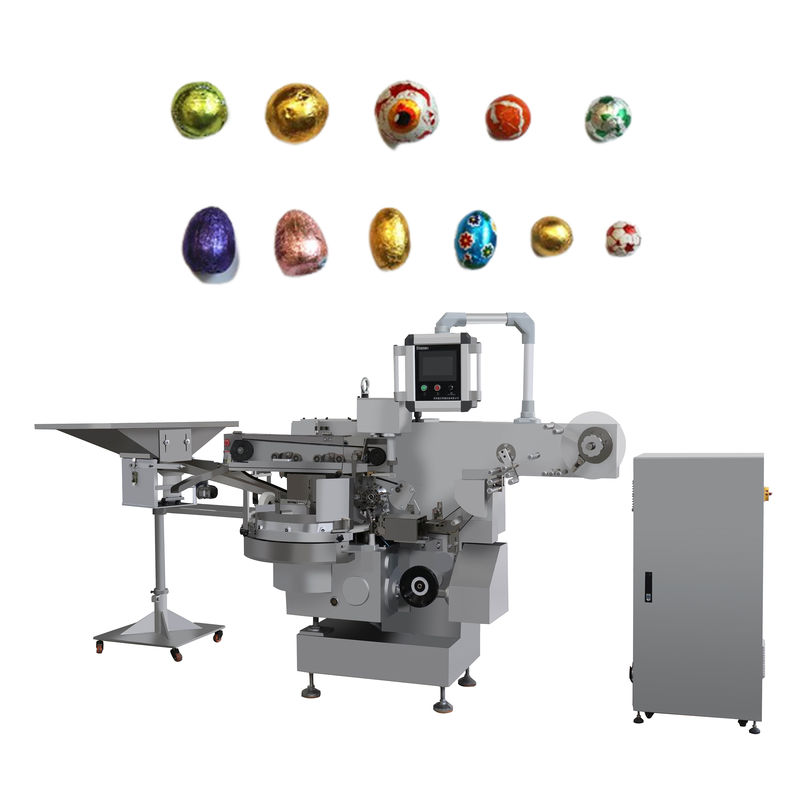

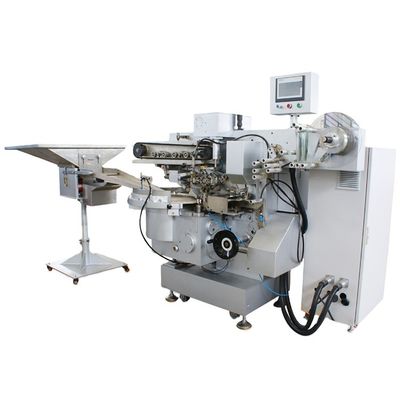

The complete machine consists of one set WS-SBQS450 Spherical Chocolate Packing Machine and one set SL-SBLD Shake Hopper.
| Model | Name | Material | Picture |

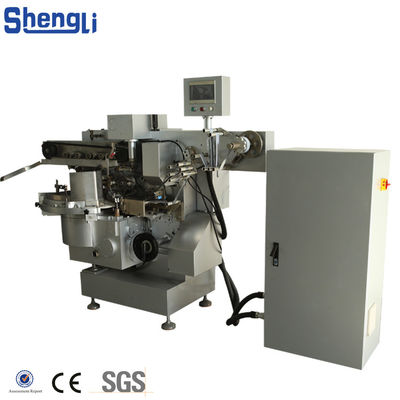

| SL-SB QS450 | Spherical Chocolate Packing Machine
| machine body: spherical iron ; Clip: alloy steel ; Touching with candy parts: stainless steel 304 and PU.
|
|

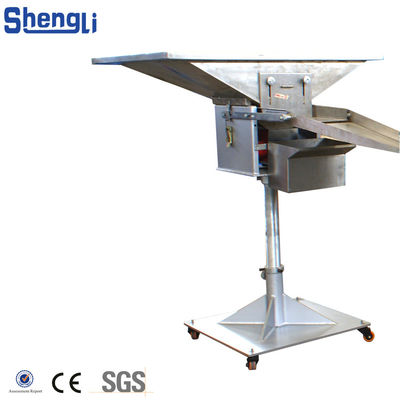

| SL-SBLD | Shake Hooper | machine body: carbon steel
|
|
Special Features:
1. Adopt PLC & program software , easy operating and setting .Auto-human touch screen and three color warning light ,self failure diagnosis , clear failure display .
2.Fully automatic program-controlled with servo motors,highly stable and reliable
3.Flexible in color sensor settings,paper feeding self-tracking and correction packing ,providing a consistent packing style and a good product appearance.
4.Self-protection for abnormal product
5.Online product feeding status monitoring-only feeding wrapping paper when product arrives desired position,which keeps paper consumption at an extremely low level.
6.Removable truckle with machine ,height can be adjusted.
7.Large space switch power supply,electrical device’s brand can be choose.
2.Packing Machine Technical Specification and Main Components
(1).Main Specification and Technical Parameters
Table 1
|
Main Specification and Technical Parameters | Packing Speed | 300-400ppm(decided by-products shape and size ) | |
| Size of chocolate | (Spherical) D:10-32 mm | (Eclipse) Minor D: 5-20mm, Major D:5-32 mm | |
| Total power | 3.5kW | ||
| Power supply | 380V/220V 50HZ 3P (customized) | ||
| Air supply | 0.6Mpa | ||
| Qualification rate of packaging | 98% | ||
Table 2
Table 3
| Wrapper width | 80-130mm |
| Wrapper material | Foil/PET/Film and so on |
| Wrapper | Must send to our factory on one month after the order |
Table 4
| Air compressed | 0.6MPa |
| Air displacement | 0.6 m³/min |
Table 5
| Chocolate Mold | Must send to our factory on one month after the order |
(2).Main Components
l Servo motor for feeding paper Japanese(Panasonic )
l Touchscreen Taiwan(Weinview)7.5”
l Frequency converter Taiwan(Delta)
l Candy sensor Germany(LEUZE)
l Color code sensor Germany(SICK)
l Oversize candy proximity switch Germany(LEUZE)
l Origin proximity switch Germany(LEUZE)
l Encoder Italian(LIKA)
l Solid relay Japanese(Omron)
l Switch power supply China
l Precision potentiometer Mexico(Bourns)
l PLC Chengdu(WS)
3.Company Introduction
Chengdu ShengLi Mechanical Equipment Co.,LTD is one company which are professional in the design, development, production and sales of food processing and packing machinery and specializing in providing automatic food processing solutions and customer services for decades (Chengdu WealthRise Complete Mechanical Engineering Co., Ltd is a wholly foreign-owned enterprise founded in 2004 ).
|
|
4.Package and Shipping
(1)Package Standard: Wooden case package as international trade package.
(2)Package Supply and Recovery: Supplier supply package according to customer requirements and recovery depend on the customer.
(3)Package Size and Weight(just for reference )
(4)Send to customer’s named place in China
| Gross weight | Packing machine | 1600kG | Total 1700KG |
| Shake Hopper | 100KG | ||
| Dimensions of case (L*W*H) | Packing machine | 2970*1570*2250mm | Total 11m³ |
| Shake Hopper | 1170*1170*750mm |
|
|
|
|
6.Other Terms
6.1.The Condition and Limits supplier charge: Guarantee one year in standard operation
6.2.Acceptance Inspection and Means: According to enterprise standard in supplier factory, if
you have any suggestion please tell us in one mouth after debugging
6.3. Spare Parts and Tools Instruction: Check in Appendix 1
6.4. Spare Parts Guarantee one year, except spare parts loss because of incorrect operation and 3 months for parts on Appendix 1.
6.5.Other Terms: Facility’s installation and debugging should be finished in BUYER’s factory
by the assigned engineer (usually ONE person) from SELLER’s factory.BUYER should afford all the expenses generated as soon as engineer being away from China, which including transportation, meals, accommodations, as well as additional USD50 per person per day during installation and debugging.
