Product Details:
|
| Type: | Wrapping Machine | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Food Shop |
|---|---|---|---|
| After Warranty Service: | Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | None |
| Showroom Location: | None | Condition: | New |
| Application: | Food, Medical, Chemical | Packaging Type: | Film, Foil |
| Packaging Material: | Plastic, Paper | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 380 V |
| Dimension(L*W*H): | 1250*2960*2150 MM | Weight: | 2600 KG |
| After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Not Available | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Motor, Engine, Bearing, Pump |
| Packing Speed: | 260ppm | Size Of Chocolate: | (L*W*H)10-80mm*4-45mm*4-35mm |
| Air Supply: | 0.6Mpa | Qualification Rate Of Packaging: | >=98% |
| Wrapper Width: | 80-130mm | Wrapper Materia: | Foil/Film |
| Machine Type: | Horizontal Wrapping Machine | Wrap Type: | Various Sizes And Shapes |
| Material: | 304 Stainless Steel | Port: | Shanghai |

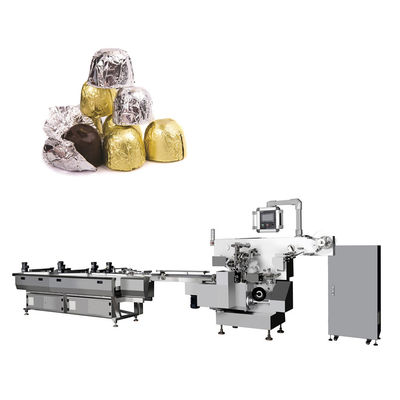

High-speed New Design Full Automatic Chocolate Aluminum Foil Wrapping Machine
|
Main Packing Machine Specification and Technical Parameters | Product Name | Foil wrapping machine | |
| Model No | SL-SBZB450S/ SL-SBZL500 | ||
| Packing Speed | 200-300 ppm | ||
| Chocolate size(L*W*H) | Normal(mm) | 10-80*4-45*4-35 | |
| Total power | 5 KW | ||
| Power supply | 380V/220V 50HZ 3P | ||
| Air supply | 0.6Mpa | ||
| Qualification rate of packaging | >=97% | ||
| Air displacement | 0.6 m³/min | ||
|
Wrapper | Wrapper width | 80-130mm | |
| Wrapper material | Foil/PET/Film and so on | ||
| Arranging and Feeding Machine Technical Specification and Main Components | Total Power | 2 KW | |
| Compressed Air | 0.6Mpa | ||
| Frequency Converter | Taiwan(Delta) | ||
| Gross weight | Wrapping machine | 1600kG | |
| Feeding Conveyor | 1000KG | ||
| Dimensions of case (L*W*H) | Wrapping machine | 2960*1560*2200mm*1 | |
|
Feeding Conveyor | 2360*860*1220mm*1 | ||
| 1560*860*1260mm*2 | |||
| The period for dispatch | 60 days after receipt of deposit | ||
This complete machine is a fully automatic high-speed wrapping machine, which using automatic control to convey and pack foods, such as chocolate and other food that are not easily be handled or fragile.

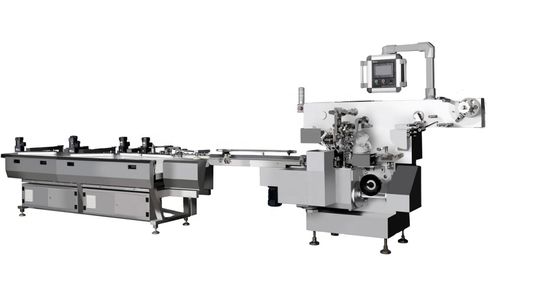

The complete machine consists of one set SL-SBZB450S Foil Packing Machine and one set SL-SBZL500 Arranging and Feeding Machine.
Installation

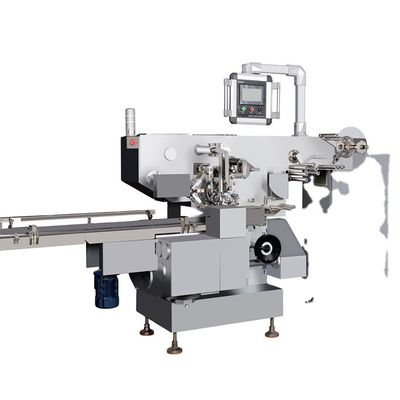

SL-SBZB450S series automatic wrapping machines are mainly used for brushing style wrapping of chocolate, hard candy, pressed, and etc. The model is suitable for different types of aluminum foil wrapping materials, providing a wide choice in product shapes and sizes. The packing machine possesses full details of patterns on wrapping material with various styles, providing an excellent wrapping performance.
1. Adopt PLC & program software, easy operating, and setting. Auto-human touch screen and three-color warning light, self-failure diagnosis, clear failure display.
2.Fully automatic program-controlled with servo motors, highly stable and reliable
3.Flexible in color sensor settings, paper feeding self-tracking, and correction during packing, providing a consistent packing style and a good product appearance.
4.Self-protection for abnormal product
5. Online product feeding status monitoring-only feeding wrapping paper when the product arrives at desired position, which keeps paper consumption at an extremely low level.
6. Removable truckle with the machine, height can be adjusted.
7. Large space switch power supply, an electrical device’s brand can be chosen.
Chengdu ShengLi Mechanical Equipment Co., LTD is one company which are professional in the design, development, production, and sales of food processing and wrapping machinery and specializing in providing automatic food processing solutions and customer services for decades (Chengdu WealthRise Complete Mechanical Engineering Co., Ltd is a wholly foreign-owned enterprise founded in 2004 ).
Q1: What’s the payment term you accept?
A1: By T/T or L/C.
Q2: What's your delivery time?
A2: Normal time is 60 days for a single packing machine, except for custom packing machines. And the actual time will vary from different order conditions.
Q3: How do you pack your machine for shipment?
A3: The machine is overwrapped with plastic film and then packed in fully closed standard wooden cases with a strong bottom pallet.
Q4: How to control your machine quality?
A4: Quality is our belief. We are always focused on Professional design and quality. High precision for parts processing. Use of quality raw material. Use of international brand electrical components.Assembly as per technical standard. Performing trail running and pre-shipment inspection.
Q5: Which countries have you ever exported your machines to?
A5: Malaysia, Belgium, Korea, Russia, Hungary, USA(California), Mexico, India, Turkey, Tajikistan, Uzbekistan, Ukraine, Vietnam, Ecuador, Algeria, California, and Ukraine.
Q6: Why choose us?
A6: (1) Quality machine:
The beautiful outer shape and rational configuration.
High-quality material and renowned international brand electrical components.
Advanced control system with PLC, HMI, and Servo.
Simple and easy debugging and operation.
Strong functionality, stable performance, and easy maintenance.
High cost-effective performance.
(2)Technical service:
OEM manufacturing. Free on-site technical training.
Optimal customized solution.
Quick response to the user’s query.
Highly efficient and satisfied after-sales service.
Q7: What’s the language used for the operating system?
A7: English is used as an operation control language.
Q8: What’s the warranty period?
A8: 12 months after shipment.
Q9: What about after-sales service?
A9: When necessary, we will send our technician to the customer’s factory for installing, debugging, and operating the machines, as well as free technical training service. But, our customer shall bear the service cost for a visa, round-trip ticket, meal, hotel, and a daily allowance of usd50.
